BMC/SMC raw material uses Alita’s unsaturated polyester resin.

Sheet & Bulk Molding Compounds

Bulk Molding Compounds (BMC) and Sheet Molding Compounds (SMC) are both fiber reinforced materials, typically utilizing glass strand fibers of varying lengths. SMC uses slightly longer length fibers than BMC, and typically has a higher percentage of reinforcement fibers than BMC. Fiber Lengths range from 1/32-inch in BMC up to 1-inch in some SMC’s, resulting in various strength characteristics which can be customized for individual needs.

Standardized and customized

Polyester/vinylester-based sheet molding compounds (SMC) and bulk molding compounds (BMC).

1750381522 3590

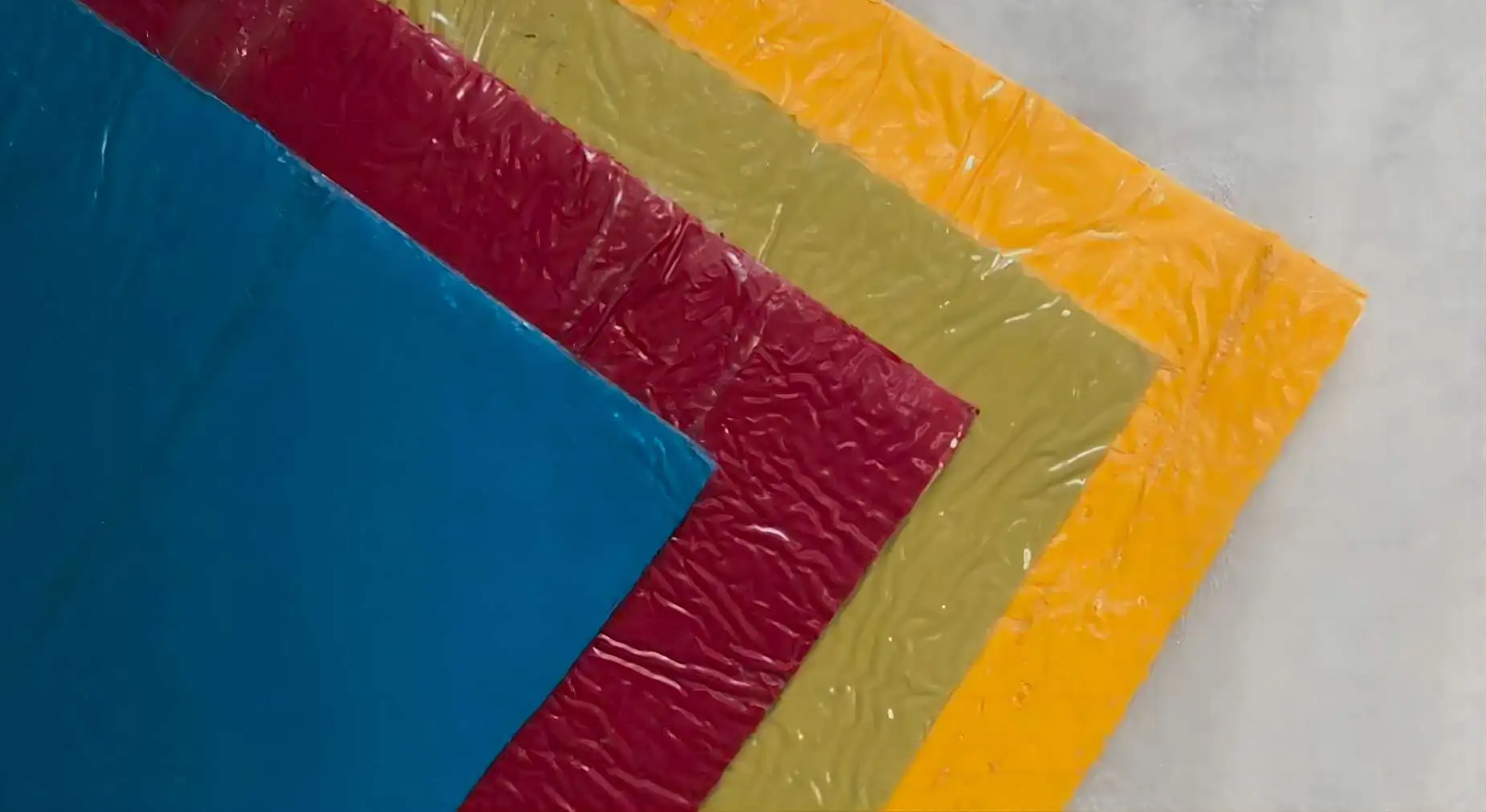

Sheet Molding Compounds

1750381532 6929

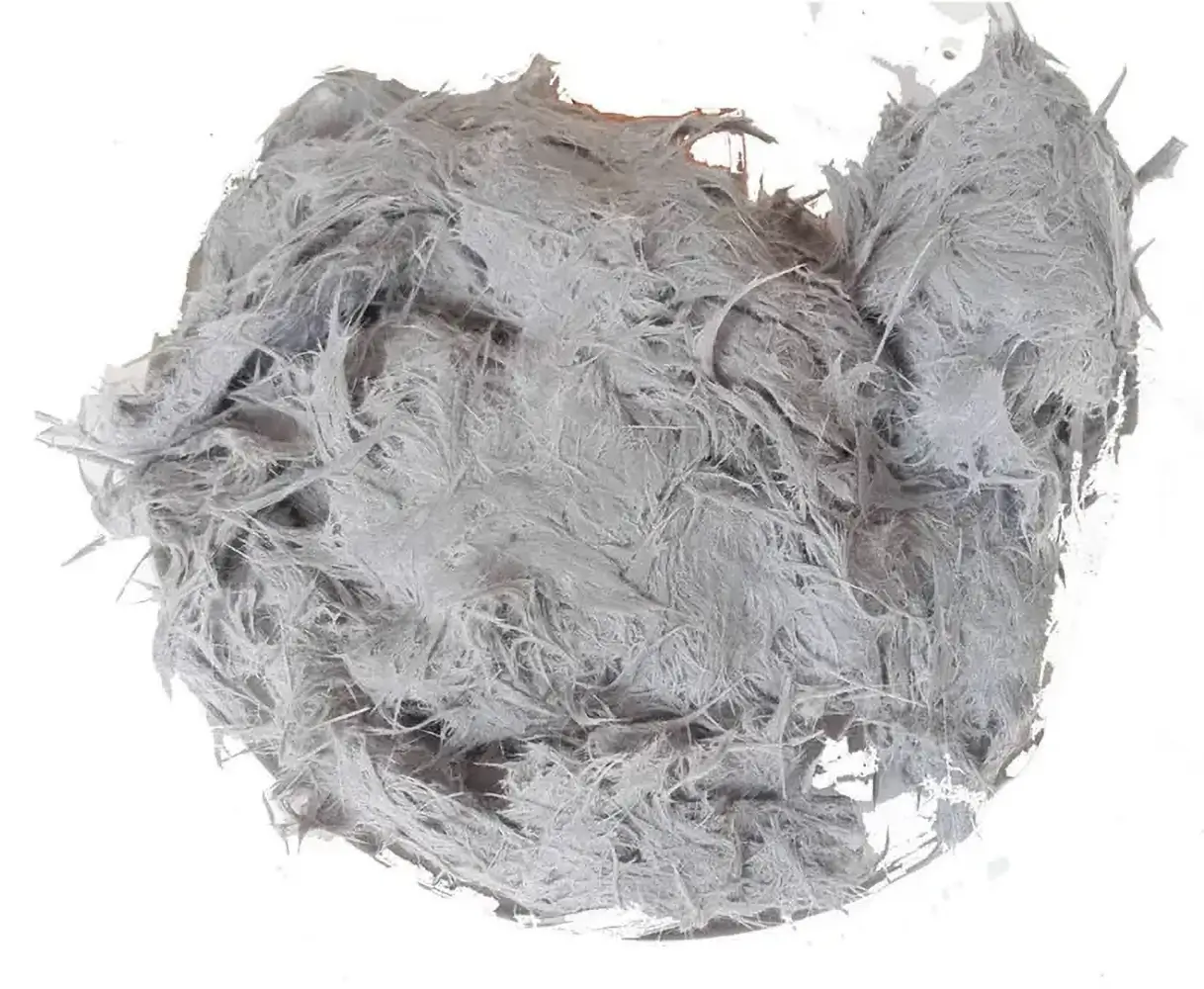

Bulk Molding Compounds

1750381565 9002

  • SMC Composite

Kaerda: Expert in Advanced Composites (SMC, BMC, Prepregs) & Custom Molding

Kaerda manufactures top-tier SMC, BMC, Prepreg composites & custom molded products. ISO 9001 certified, we deliver innovative, tailored solutions for automotive (EVs), rail, electrical, and industrial applications. Benefit from our R&D expertise, consistent quality, and manufacturing efficiency. Partner with us for your success!

Custom Formulated Sheet (SMC) & Bulk Molding Compounds (BMC)

Material PerformanceMaterial DescriptionSMC Series NumberBMC Series Number
General PurposeGeneral purpose composite materials with a wide range of applications. Suitable applications are typically structural in nature with no flammability requirements.S100B100
Heat and Corrosion ResistantComposite materials intended for use in sanitary, cookware, appliance and indirect food contact applications.S200B200
Low Shrink MaterialsLow shrink composite materials. Well suited for applications requiring shrink < 0.1%.S300B300
UV StableThese materials are suitable for use in applications requiring superior colorfastness & physical property retention upon exposure to UV and visible light.S610B610
Low Flame & Smoke ToxicityThese materials provide low flame & smoke toxicity in accordance with ASTM E162 and E662 standards.S620
Corrosion ResistantThese composites are typically unsaturated polyester or epoxy vinyl ester materials formulated to meet the strict performance requirements of pumps, pipe flanges & underground applications that are impacted by corrosive environments.S800B800
Dielectric & Flame ResistantSuitable for electrical applications requiring a composite material that possesses a UL Yellow card and flammability performance from UL94 HB, V-0 & 5VA. These materials can be found in Underwriters Laboratory file E53587.E200 Series400 Series
Electrical Insulators & Flame ResistantThese high strength Rosite BMC composites are suitable for use in electrical applications requiring materials that possesses dielectric properties and flammability performance from UL94 HB, V-0 & 5VA.1000 Series3000 Series
Flame Resistant & Low Smoke ToxicityThis composite is certified as a low smoke toxicity material with a UL94 V-0 flame rating. It’s physical characteristics have been certified to meet several US Municipal Transit Authority specifications.3100
